minelab F1A4 mods query ..

More
6 years 10 months ago - 6 years 7 months ago #2362 by downhalo
Replied by downhalo on topic minelab F1A4 mods query ..
,,,,,,,
Last edit: 6 years 7 months ago by downhalo.

Please Log in or Create an account to join the conversation.

  • Barry
  • Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
More
6 years 10 months ago - 6 years 9 months ago #2363 by Barry
Replied by Barry on topic minelab F1A4 mods query ..
HI D/halo ,, That Good that You asked M/L for help ,but unfortunately they do not supply schematics [BUGGA] ..
I fitted a Vol control ,..after removing the speaker,I fitted a alloy plate in place of the speaker to allow future switches-pots etc..
for vol control I used the speaker wires [Red& black] & sealed the H/phone wires [disconnected-them]
I used a 1k pot ,But used it in series only so as not to short them at min volume ..

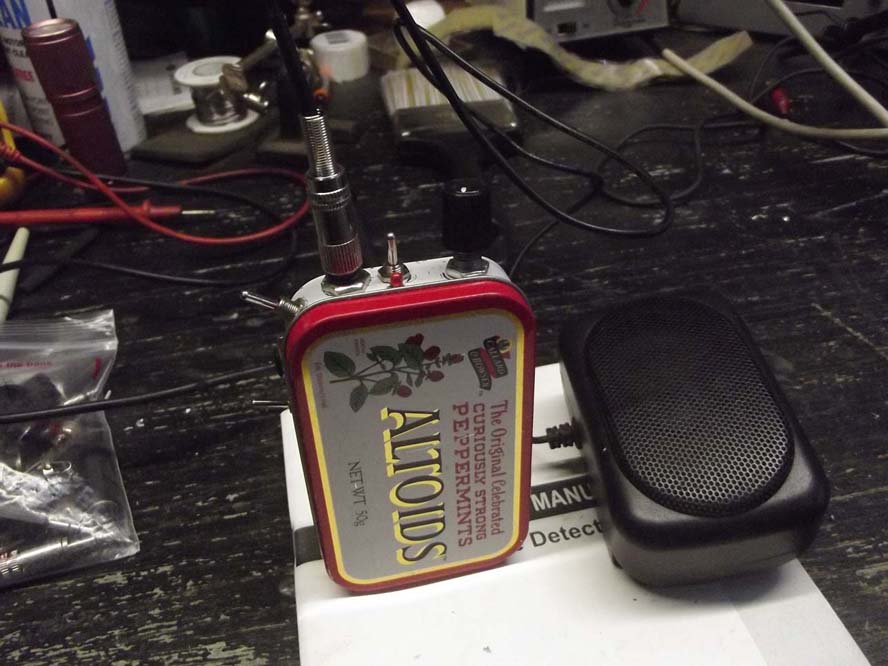

I am using my H/made Amp \'\'pictured\'\'Just a LM386 chip & a few resistors & caps powered by 9volt battery..[You can add a tone control to that [Just a top cut] i also have a boost switch ,but found not needed..
I then have a shoulder speaker [A mobile phone car kit one I had lying around nice little case etc..Can plug in H/phones as well..

OK NOBODY is going to publish the Mods we need [[ie] timing mods-Gain control- ETC,ETC..because its a delicate job & of course a money earner [understandable]..

ON another Subject I today go to ADELAIDE for a ANGIOGRAM tomorrow ,Hoping to get a good result as I want to Go to Victoria for a few weeks .At 74 Y/old i guess i expect these Medical issues..
i have been to M/L here in SA [Adelaide] very secretive People I found out The place is locked up tight Video & questions before the let you in!!!!
I am also trying to find-out the opperation of the 4x wires that come from the Power plug ?? the 2x heavier ones supply battery power to the Board [RED-pos & neg black] MAYBE programming wires & or some accessory??????
I would like to use alterate power supply ..
A GEL-cell regulated to 6-7.2v ??? but leaving that untill i Know for shure !!!..
I don\'t think we need a a threshold pot , But a gain front end pot would be better..
MY UNTIDY DIY BENCH..

CHEERS MATE,,BARRY..
